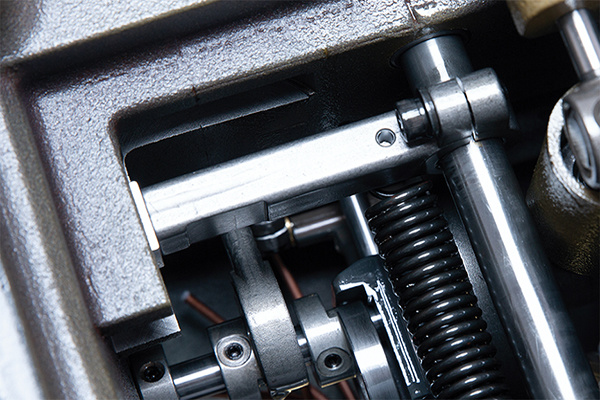

INCREASED STABILITY IN ROD MOVEMENT
The patented design enhances the stability
of the needle rod and crochet during motion,
It has the advantages of uniform stitching and long service life.
Fur Sewing Machine-Plush Toy Style
JJ2610-TDII
Categorie:
keyword:
Toy
Labubu
Neck pillow
Applicable to: machine is suitable for sewing sofa covers, plush toys, neck pillows, knee pads, etc.
JJ2610-TDII type direct drive fur machine directly installs the motor on the machine head, compact structure, extended operating space, it has a lot of advantages include. No oil leakage design with built-in slider and seal ring, accurate needle positioning, speed can be set, which is the ideal high-speed and efficient sewing equipment for related industries.
Applicable to: machine is suitable for sewing sofa covers, plush toys, neck pillows, knee pads, etc.

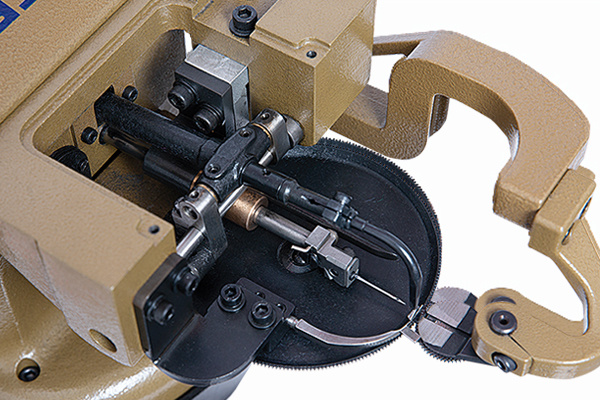

PRESSING MATERIAL DEVICE
Equipped with a patented pressure device,
the slider maintains the stability of the
bracket. It has the advantages of good
sealing, better pressing quality,
and unbreakable needles.

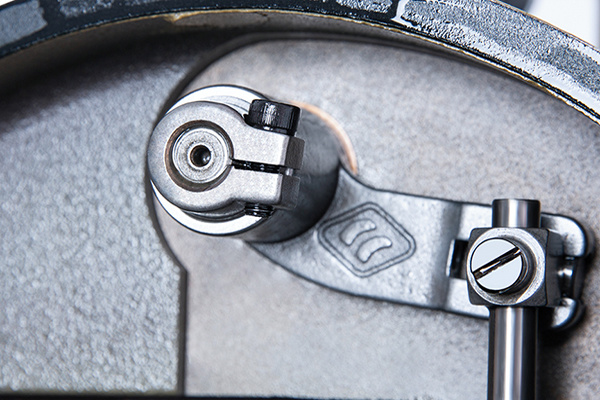

THE ONE-WAY DRIVE MECHANISM
Equipped with a patented one-way drive
mechanism for the feeding disk. making
the stitching more stable.lt has the advantages
of low friction, reliable transmission,
uniform feeding, and long service life.

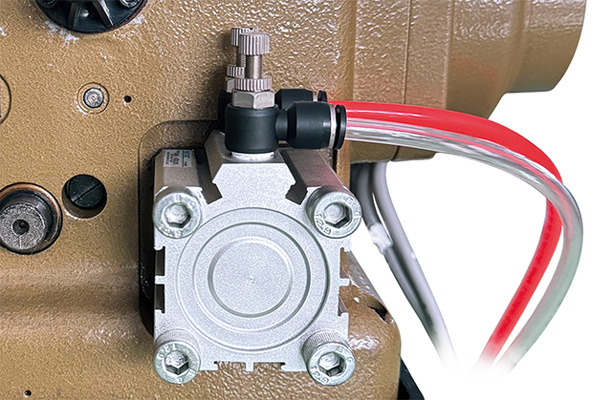

PNEUMATIC FOOT LIFTING
Equipped with pneumatic foot lifting device,
it has a lot of advantages include simple
structure, high precision, strong reliability,
Large power, and improved production efficiency.
Technical Parameters
| Model | Needle specifications |
Number of lines |
Needle pitch (mm) |
Stitch width ( mm) |
Needle rod stroke(mm) |
Maximum sewing speed (s.p.m) |
Power (w |
NW/GW (kg) |
Packaging size(mm) Length x wdth x helght |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| JJ 2610-TDⅡ | DBx1 14/90 | 1 | 0.9-3.0 | 2.5 | 29.0 | 1800 | 550 | 34.5/44.5 | 530x340x365 |
Functional cross-reference
| Model | Oil spray unit | Speed seting | Needle positioning | Direct dive | The one-way drive mechanism |
Enhanced needie rod |
Presser foot | Refueling method |
| JJ 2610-TDⅡ | ● | ● | ● | ● | ● | ● | ● |
Automatic oil injection device
|
